Rivet shelves are a commonly used storage shelves, which are named because of the rivet hanging method between the beams and the columns. Today, Kemei Steel Cabinet will introduce you to the classification and structural characteristics of rivet shelves.

Rivet shelf classification

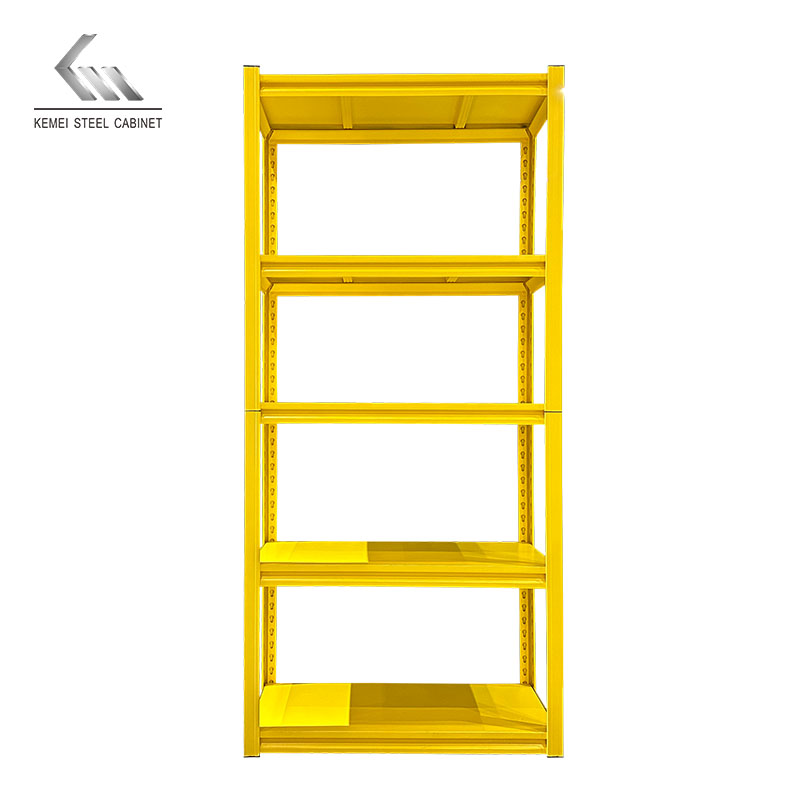

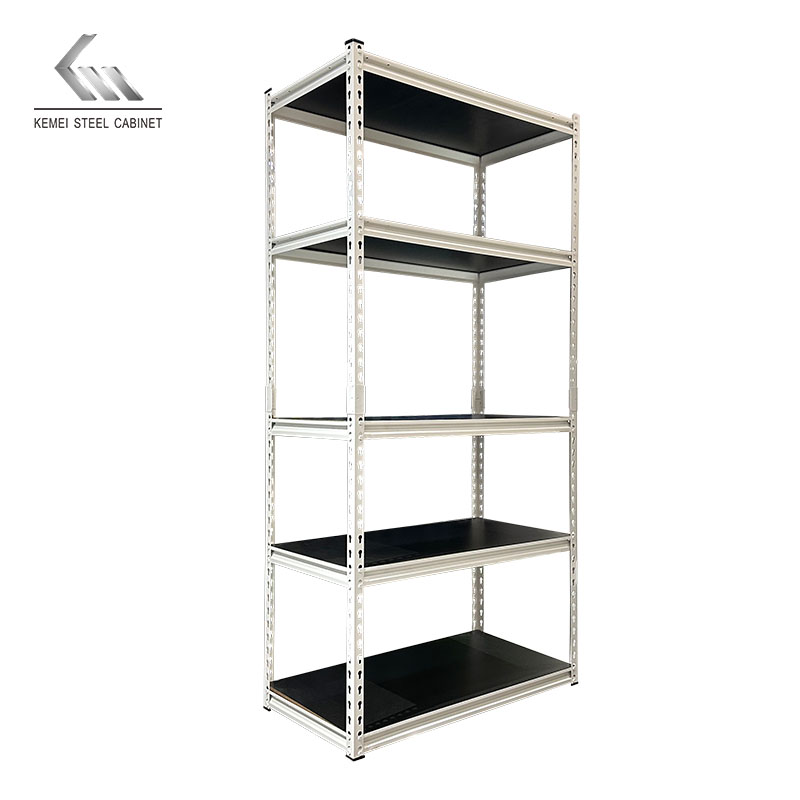

Single rivet shelves

Single rivet beam rivet shelves are a high-density shelf. A single rivet beam rivet shelf can hold 5 layers of shelves and can be adjusted at will. There is no back-type fixation, which gives the shelf more space without hindering the stability of the shelf. Two shelves can share a T-shaped column when placed side by side. This shelf is easy to disassemble and assemble, and no tools are required. Heavy P rods and heavy single rivet beams can be used to store heavier items.

Double rivet shelves

Double rivet beam rivet shelves are a type of shelf that can store larger capacity items. A double rivet beam shelf can hold 2~3 layers of shelves. It can be disassembled and installed at will without any tools, which is convenient for users. Two shelves can share a T-shaped column when placed side by side. Heavy P rods and heavy single rivet beams can be used to store heavier items.

Rivet shelf structure

1. The shelf has a snap-on structure, which is easy to disassemble and assemble; the contact with the ground is equipped with plastic feet.

2. Shelf columns: Made of double-sided punching of equilateral angle steel, the hole distance is 50mm and arranged in a straight line, and the column holes are used to hang the shelves;

3. Shelf steel shelves: cold-rolled steel plates are bent and formed on the four sides according to the required size. The shelves can be steel shelves or wooden shelves.

4. The columns and steel shelves are connected and fixed by quick-release pins and triangular fixing plates.

5. After the various parts of the shelf are processed and formed, they are all polished, pickled, phosphated, fully automatic powder electrostatic sprayed, dried and other processes before being assembled into finished products. The finished shelf has a smooth and beautiful surface; the shelves can be adjusted up and down at will, and are easy to disassemble and assemble.

In general, rivet shelves are widely used in light cargo storage in small and medium-sized enterprises due to their flexible design, easy operation and high cost-effectiveness. They are an ideal upgrade choice for traditional simple shelves.Suitable for warehouses, offices, garages, schools and other scenarios.

If you want to know more about rivet shelves, please feel free to contact us!
